Stacked heat sink

Short Description:


Product Detail

Product Tags

Stacked heat sinks are formed by using a high pressure to press single fins, multiple fins, and single extrusions together into a stacked heat sink. This type of stacked fin heats which are formed by press-fit approach can realize a cooling structure that has both top and bottom base plates for mounting power devices. No interface material is required for assembly when using this technique and it has the benefits of low development cost, high flexibility in forming heat sinks with different width and structures so that it is highly universal. This technique has been widely used in the cooling of high power devices such as power inverters and transformers, generators, etc.

2017011811032142

Stacked heat sinks have advantages such as increasing cooling area while forming a closed passage at the same time so as to achieve higher thermal performance, no restriction on itvolume, higher strength, lower manufacturing cost, easier installation and maintenance, longer service life, etc. Via our technical innovations, Winshare Thermal has mastered the technique of re-stacking aluminum extrusions for the production of high power heat sinks. We have several mature production lines for stacked heat sinks and have acquired the endorsement from Israel's military enterprises since we manufactured several batches of large stacked fin heat sinks.

2017030110233952

Cut the aluminum extrusions into single pieces of the heat sink according to the design drawings prepared by engineers

2017011811004057

Single pieces of heat sinks are joined together by the stamping technique

201701181100478

Carry out surface machining such as fly-cuts on the semi-finished products. Further processes such as tapping, drilling, and grooving can be carried out so as to form a finished stacked fin heat sink.

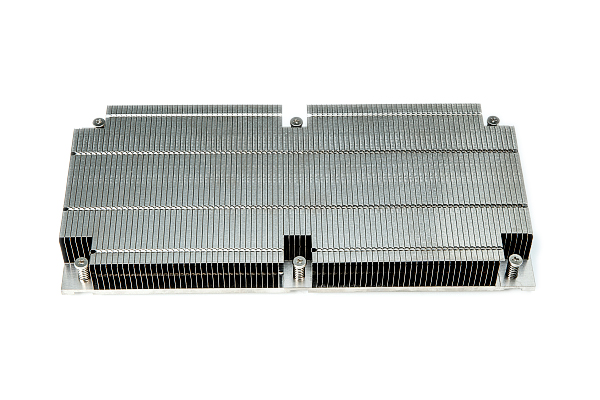

Reference product

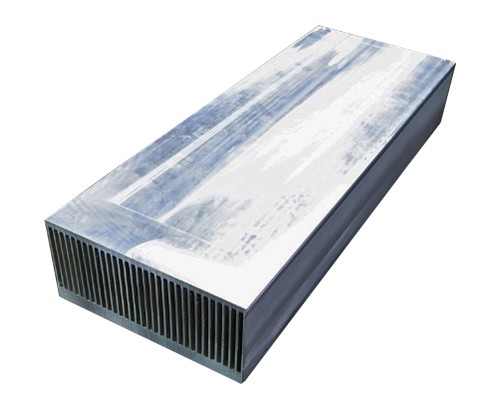

4c8d355ef97933c8a8d9de40f3352e7a

Stacked fin heat sink

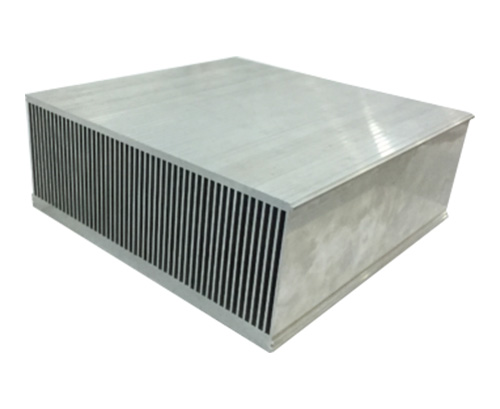

317ef102301f88e129b7c2005b4491d2

Stacked fin heat sink

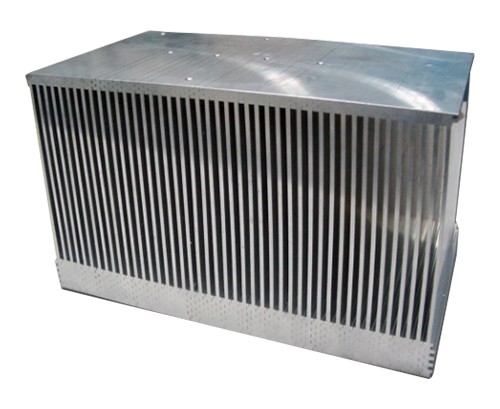

f07b792490d9ae91fc995cbc3ebfa3f7

Stacked fin heat sink

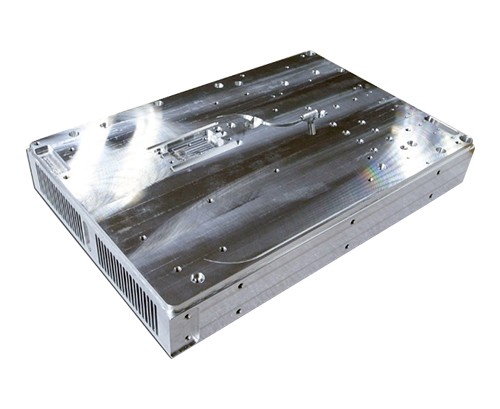

ba54f7b49896d19ab29b23579e841d07

Stacked fin heat sink
